Product Details:
Payment & Shipping Terms:
|
| Screw Diameter: | 30mm | Delivery: | 45 Days |
|---|---|---|---|
| Overseas Service: | Available For Machine Installation And Commissioning | Application: | PE,PP,PET Masterbatch |
| Brand: | CPM Ruiya Extrusion | Warranty: | 12 Months |
| High Light: | laboratory twin screw extruder,laboratory scale extruder |
||

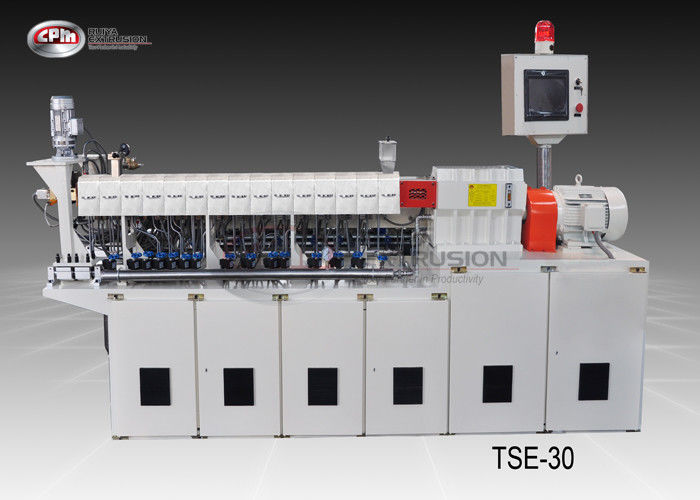

PE, PP, PET,ABS, PC with TiO2, Colour pigments, carbon black and etc; masterbatch application, TSE30, 30mm Extruder
General Information:
1. Screw Diameter: 30mm
2. Capacity: 10~20kg/h
3. Pelletizing: Strand Pelletizing
4. Warranty: 1 year
5. Service: Available for Machine Installation and Commissioning
Masterbatch Extrusion Line Features:
1. Good dispersion screw design
2. Improved carbon black feeding capacity and dispersion
3. Classified area capability and anti-dust.
4. Supplied more than 500 lines worldwide.
Technical Brief:
| Model | D(mm) | Central Distance(cm) | Max L/D | Screw Speed(rpm) | Max Power (kw) | Torque/Shaft(Nm) |
| TSE20 | 22.0 | 1.48 | 72 | 600 | 4 | 30 |
| TSE30 | 30.0 | 2.60 | 72 | 600 | 11 | 83 |
| TSE35 | 35.6 | 3.00 | 72 | 600 | 18.5 | 140 |
| TSE40 | 41.0 | 3.45 | 72 | 600 | 30 | 227 |
| TSE52 | 51.4 | 4.30 | 72 | 600 | 55 | 416 |
| TSE65 | 62.4 | 5.20 | 72 | 600 | 90 | 680 |
| TSE75 | 71.0 | 6.00 | 72 | 600 | 160 | 1210 |
| TSE85 | 81.0 | 6.78 | 72 | 600 | 220 | 1663 |
| TSE95 | 93.0 | 7.80 | 72 | 600 | 315 | 2381 |
| TSE120 | 120.0 | 9.80 | 72 | 600 | 560 | 4457 |
| TSE125 | 124.0 | 10.00 | 72 | 600 | 630 | 4763 |
Company Introduction:
CPM Ruiya Extrusion is one of China’s leading providers of twin screw extruders covering all kinds of
applications, compounding systems and supporting technologies.Ruiya has achieved its position in the
Chinese market place by providing industry leading equipment technology, process engineering and
after sales support. Today, CPM Ruiya Extrusion has one of the largest installed bases of machines in
Asia, covering different levels of extruders, from entry level to high level European standard
specifications for various customer requirements. Through this experience, CPM Ruiya Extrusion has
gained industry leading application experience bringing confidence to its customers not only in Asia but
also in the rest of the world.
