Product Details:
Payment & Shipping Terms:
|
Brand: | CPM Ruiya Extrusion | Motor: | Siemens |
---|---|---|---|
Warranty: | 1 Year | Application: | Plastic Reinforing Or Compounding |
Screw Diameter: | 125mm | Delivery: | 100 Days |
High Light: | polythene extruder machine,pp extruder machine |

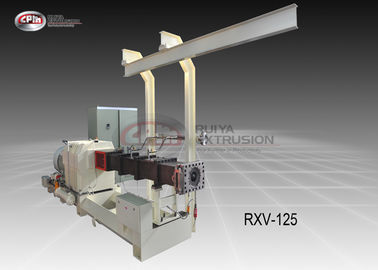

Aquafeed Twin-Screw Extruder, RXV serieTwin screw extruder special application
Company Introduction
CPM Ruiya Extrusion is one of China’s leading providers of twin screw extruders covering all kinds of
applications, compounding systems and supporting technologies.Ruiya has achieved its position in the
Chinese market place by providing industry leading equipment technology, process engineering and
after sales support. Today, CPM Ruiya Extrusion has one of the largest installed bases of machines in
Asia, covering different levels of extruders, from entry level to high level European standard
specifications for various customer requirements. Through this experience, CPM Ruiya Extrusion has
gained industry leading application experience bringing confidence to its customers not only in Asia but
also in the rest of the world.
APEX Series
CPM Extrusion Group designed the APEX series to focus explicitly on an excellent economical price. We
focus on costs and on worldwide quality without sacrificing throughput, reliability and our global service.
CPM Extrusion Group takes advantage of its expansion to supply the APEX series. The APEX series
utilizes key process section components manufactured in either Europe or US and it is assembled by CPM
Ruiya Extrusion in China.
The RXT machine is our most price competitive machine designed for the global market. The RXT series is
an economical twin screw extruder with advanced features, higher throughput, higher product quality and
higher reliability. The features here are:
European high torque gearbox, lubrication systems and safety clutch: maximum screw speed of 1200RPM;
Screw geometry based on Chinese standards;
Barrel design based on Western Standards.
APEX RXT Series Technical Data |
||||||
Model | D(mm) | Central Distance(cm) | Max L/D | Screw Speed(rpm) | Max Power (kw) | Torque/Shaft(Nm) |
RXT35 | 35.6 | 3.00 | 72 | 900 | 55 | 283 |
RXT40 | 41.0 | 3.45 | 72 | 900 | 90 | 463 |
RXT52 | 51.4 | 4.30 | 72 | 900 | 160 | 823 |
RXT65 | 62.4 | 5.20 | 72 | 900 | 315 | 1621 |
RXT75 | 71.0 | 6.00 | 72 | 900 | 450 | 2316 |
RXT95 | 93.0 | 7.80 | 72 | 900 | 1000 | 5146 |
RXT135 | 134.4 | 11.00 | 72 | 600 | 1800 | 14325 |
